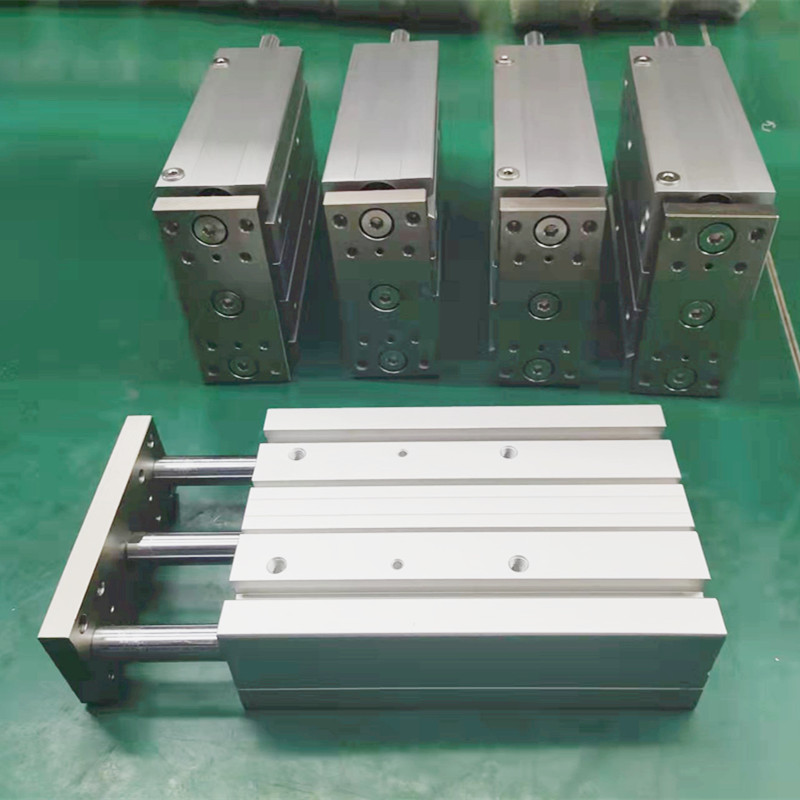

Best quality 6~100mm TCL Guided pneumatic cylinder

PRODUCT CATEGORIES

DOWNLOAD CATALOGUE

JIS Standard China Factory , guided pneumatic cylinder, Two guides of special bearing steel and linear bearing or bronze bearing guide are used to prevent rotating. They canbear high torque and radial load.

Bore size(mm) 6 10 12 16 20 25 32 40 50 63 80 100. guided pneumatic cylinder

1. JIS standard is implemented.
2. Two guides of special bearing steel and linear bearing or bronze bearing guide are used to prevent rotating. They canbear high torque and radial load.
3. Drive unit and guide unit are in the same barrel that no additional accessories are needed with minimal space required. The air intake is optional and it is convenient to install.
4. The bottom, back side and fixing plate of main body respectively has two exact orientation orifices (See PA orifice and the orifice in XX point), which can provide orientation installation with high precision for the special situation.
5. Options of switch mounting with provision 4 mounting slots.
6. Special design of main body provides multi-mount;
